Are you struggling to figure out where to plug in your ceiling fan controller? Whether you're upgrading your fan or installing a new one, it's essential to connect the controller properly.
In this article, we'll guide you through the various types of ceiling fan controllers and their ideal connection points. You'll learn how to install your controller for optimal functionality and safety.
A wall switch controller is one of the most common types of ceiling fan controllers. This basic option usually controls the fan speed and sometimes has additional features like light dimming. It operates via a simple mechanism that allows you to adjust the fan speed or turn it off entirely.
These controllers are typically installed into a standard electrical box mounted on the wall. The electrical wiring from the ceiling fan is connected directly to the switch, and when you adjust the switch, it controls the power flow to the fan, which in turn adjusts the speed and direction.
Remote-controlled ceiling fans have become increasingly popular due to the convenience they offer. With a remote control, you can adjust the fan speed, direction, and even control the lighting from anywhere in the room. This makes it ideal for rooms with high ceilings or for those who prefer not to manually adjust a wall switch.

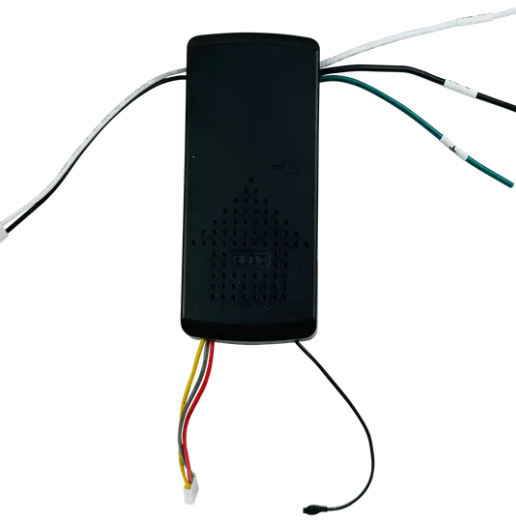

To install this type of controller, you typically need to place a receiver inside the fan’s canopy. This receiver must be connected to the fan's power wiring to ensure that the fan can receive and respond to the remote control signals. Additionally, depending on the model, the receiver might need to be connected to a wall switch or directly plugged into an outlet for power.
Smart ceiling fan controllers are an advanced option for homeowners seeking more control and integration with smart home systems. These controllers can connect to your home’s Wi-Fi, allowing you to control your fan via a smartphone app or voice assistant. They can also be programmed to adjust the fan's settings automatically based on time of day, room temperature, or other factors.
Smart fan controllers are generally installed into your fan's wiring system. Some models can be plugged directly into an electrical outlet, while others may require wiring into the fan's circuit. Once installed, they provide seamless integration with your home’s automation systems, allowing you to control the fan remotely with ease.
Plug-in ceiling fan controllers are designed for simple and temporary installations. These controllers are typically used with fans that are already plugged into a standard power outlet. The controller itself plugs into the wall socket, and the fan’s power cord is then plugged into the controller.
This setup is extremely easy to install as it does not require any electrical work or permanent installation. Plug-in controllers are ideal for renters or for anyone who needs a quick and non-invasive way to control their fan’s settings. They allow for quick adjustments to fan speed and direction with the added convenience of a remote control.
Controller Type | Description | Where to Plug It |
Wall Switch Controllers | Basic fan speed and direction control. | Install in standard electrical box on the wall. |
Remote-Controlled Controllers | Allows remote control of fan from anywhere in the room. | Install receiver in the fan's canopy, and connect to power wires. |
Smart Ceiling Fan Controllers | Connects to Wi-Fi or Bluetooth for app and voice assistant control. | Wire into ceiling fan's circuit or plug into electrical outlet. |
Plug-in Controllers | Simple controllers that plug directly into an outlet. | Plug the fan's power cord into a standard wall outlet. |
To install a wall switch ceiling fan controller, start by gathering the necessary tools, including a screwdriver, wire nuts, electrical tape, and a voltage tester. Before beginning, make sure to turn off the power to the fan at the circuit breaker to avoid electrical hazards.
Begin by removing the existing switch. Once the switch is removed, use the wiring diagram provided with your new ceiling fan controller to connect the wires correctly. Secure the new controller in the electrical box, making sure it’s tightly fixed. Afterward, turn the power back on and test the functionality of the switch to ensure everything is working correctly.
Installing a remote-controlled ceiling fan controller typically involves placing the receiver inside the fan’s canopy. The receiver should be wired into the fan's power lines and secured in place within the ceiling box. Once the receiver is installed, you can sync the remote to the receiver by following the manufacturer’s pairing instructions.
This process usually requires a screwdriver and some basic wiring tools. It’s important to ensure the receiver is properly connected to the fan’s power supply, as a loose connection can result in poor functionality or no response from the remote.
For a smart ceiling fan controller, you will need to ensure that it’s compatible with your home’s smart system, whether it's via Wi-Fi or Bluetooth. Start by turning off the power to your fan and following the instructions for wiring the controller into the fan’s electrical system. Once the controller is connected, download the associated app and follow the setup steps to connect it to your Wi-Fi network or voice assistant.
Some smart fan controllers also integrate with other smart home devices, such as lights and thermostats. Once installed and set up, you can use your smartphone or voice commands to adjust the fan’s speed and settings.
Plug-in ceiling fan controllers are the easiest to install. Simply plug the controller into a standard power outlet, and then plug the fan’s power cord into the controller. The controller typically comes with a remote or a wall-mounted switch to adjust the fan speed or direction.
Since these controllers don’t require any wiring, they are perfect for quick installations, and they provide a great solution for those who need temporary or portable fan control. Once plugged in, you can immediately begin adjusting the fan settings.
If your ceiling fan controller isn’t working, the first step is to check the power supply. Ensure the power is correctly connected, and that the circuit breaker hasn’t tripped. If the fan still doesn’t work, it could be a wiring issue or a malfunction within the controller itself. In such cases, inspect the wiring carefully or consider replacing the controller if necessary.
If your remote control isn’t responding, start by checking the batteries. Make sure the batteries are fresh and properly installed. If the batteries are fine, the issue might lie in the syncing process. Re-pair the remote with the receiver, ensuring that the receiver is correctly installed and able to receive signals from the remote. If the problem persists, check the receiver installation to ensure it's securely connected.
If the fan speed is fluctuating or inconsistent, check the wiring of the controller. Ensure it is correctly wired to handle multiple speed settings. Sometimes, the controller may be malfunctioning, or the speed setting switch could be faulty. If the wiring seems intact and the issue persists, replacing the controller might be necessary to restore proper fan speed control.
Issue | Potential Causes | Suggested Solutions |
No Power or Functionality | Incorrect power connection, tripped circuit breaker | Check power supply and ensure circuit breaker is not tripped. Inspect wiring or replace controller if necessary. |
Remote Control Not Working | Dead batteries, poor syncing with receiver | Replace batteries and re-sync the remote. Check the receiver installation. |
Fan Speed Control Issues | Incorrect wiring, malfunctioning controller | Verify the wiring setup and check for malfunctions. Replace the controller if necessary. |

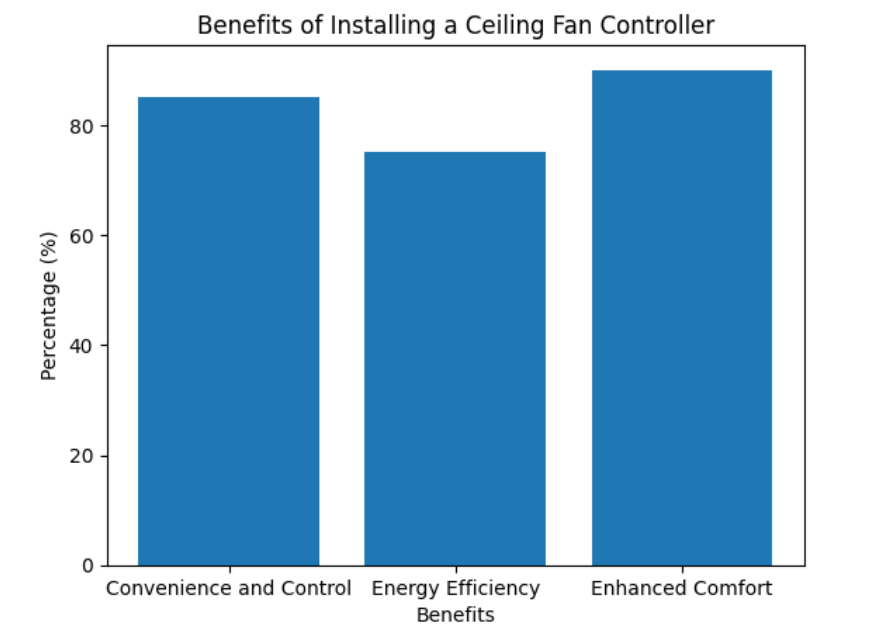

A ceiling fan controller offers added convenience by giving you control over the fan speed and direction. This means you can adjust the fan settings easily to suit the season—whether creating a cooling breeze in the summer or circulating warm air in the winter. This flexibility enhances the comfort level of any room, making it easier to adapt to changing weather conditions and personal preferences.
Modern ceiling fan controllers, especially smart models, can significantly boost energy efficiency. These controllers allow you to fine-tune the fan settings based on room conditions, which helps minimize energy consumption. By adjusting fan speed to match the temperature or time of day, they reduce the need for air conditioning and heating, which can lead to lower utility bills over time. As a result, you enjoy both comfort and energy savings.
Ceiling fan controllers provide the ability to customize your environment to your exact needs. Whether you’re looking for more airflow on a hot day or a quieter setting to sleep at night, these controllers allow for easy adjustments. This level of customization not only improves the airflow in your space but also contributes to creating a more comfortable and pleasant living environment, no matter the season.
Installing a ceiling fan controller enhances the fan's performance and efficiency. There are various options, including wall switches, remote-controlled units, smart controllers, and plug-ins. Each type offers different convenience, control, and energy savings. By choosing the right controller, you can optimize comfort, reduce energy costs, and enhance your home's efficiency. GUANGDONG SHUNDE SANKEY ELECTRONIC TECHNOLOGY CO.LTD offers innovative ceiling fan controllers that provide excellent value, boosting your fan’s functionality while ensuring a more comfortable living space.
A: A Ceiling Fan Controller is a device that regulates the operation of a ceiling fan, allowing you to control its speed, direction, and sometimes the lighting.
A: The appropriate location depends on the type of controller. Wall switches are connected to the electrical box, remote receivers are installed in the fan's canopy, and plug-in controllers go directly into an electrical outlet.
A: Yes, depending on the type. Basic controllers, like plug-in models, are easy to install, while others may require more technical wiring, especially remote or smart controllers.
A: Smart Ceiling Fan Controllers are ideal for energy efficiency. They allow you to automate fan speed and control based on temperature, reducing reliance on air conditioning.
A: Ensure the controller is properly connected to the fan’s power source, and check that all wires are secure. If using a remote, ensure it's synced properly and the batteries are not depleted.
