The global ceiling fan market is shifting rapidly toward BLDC fan controller technology as energy regulations tighten and consumers demand smarter, quieter cooling. For fan manufacturers and brand owners, choosing the right DC fan PCBA control solution is no longer optional — it is the single biggest lever for meeting efficiency targets, reducing warranty returns, and differentiating products in a crowded market.
Traditional AC induction motors in ceiling fans typically draw 70–80W at full speed. A well-engineered BLDC fan controller brings that figure down to 28–35W while delivering the same airflow, a reduction of roughly 55–65%. Over a year of continuous operation, the energy savings alone can pay for the upgraded electronics — and that is before counting the longer motor lifespan and quieter operation that end users value.
A ceiling fan controller built on BLDC technology does three jobs at once:
Commutation: Electronically switches the stator coils in the correct sequence to keep the permanent-magnet rotor spinning, replacing the mechanical brushes and capacitors used in AC fans.
Speed regulation: Uses PWM (pulse-width modulation) to control motor torque precisely, enabling smooth ceiling fan speed controller operation across 6 or more speed steps without the hum and flicker common in older triac-based regulators.
Protection and feedback: Monitors rotor position via Hall sensors or sensorless back-EMF detection, and shuts down on over-current, over-temperature, or stall conditions — protecting both the motor and the controller board.
The result is a fan that starts reliably at any speed, runs quieter, lasts longer, and uses a fraction of the electricity.
Not every DC fan PCBA is created equal. When evaluating a control solution for a new ceiling fan platform, manufacturers should look at four areas:
The choice between a dedicated BLDC motor driver IC and a general-purpose MCU with external MOSFETs affects cost, programmability, and noise performance. Dedicated ICs simplify design and shorten time-to-market; MCU-based boards allow custom control loops and smarter features like natural wind simulation or IoT connectivity.
Ceiling fans are expected to run 8–24 hours a day in ambient temperatures up to 45°C. The PCBA's MOSFET selection, copper weight, and heatsinking directly determine whether the controller will survive a 5-year warranty period. A poorly designed power stage runs hot, derates early, and fails in the field.
Modern ceiling fan remote controller expectations go far beyond 3-speed IR remotes. RF remotes that work without line-of-sight, wall-mounted controllers, and smartphone app integration all require the main PCBA to accept multiple input protocols. Designing the controller board to accept these inputs natively — rather than bolting on a separate receiver — saves BOM cost and assembly time.
CE, FCC, RoHS, and increasingly energy-efficiency labels (such as India's BEE 5-star or the EU ecodesign requirements) all depend on how the controller behaves under test. A mature control firmware with stable PWM frequency, low harmonics, and clean EMI margins passes certification on the first attempt; a rushed one does not.

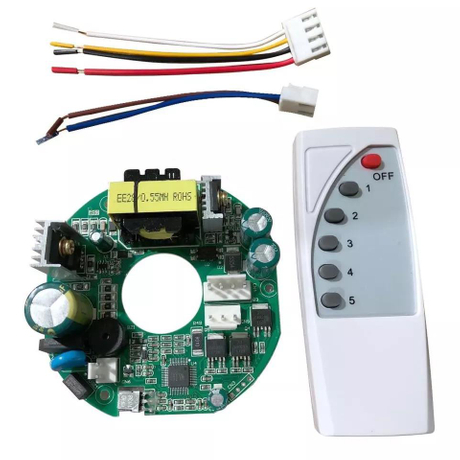

SankeyTech has spent years refining BLDC fan controller PCBA designs for ceiling fan factories and brand owners. Our control solutions combine a proven MCU-based drive stage with configurable firmware that lets manufacturers tune startup torque, speed curve, and remote-control protocol without respinning the board.
Key features of our DC fan PCBA control solutions include:
Wide 100–240VAC input range for global markets
6-step and sinusoidal commutation selectable per product line
Integrated RF receiver for Universal AC DC fan remote control
Hardware over-current and over-temperature protection
Optional Wi-Fi/BLE module slot for smart fan platforms
Because we control both the schematic and the firmware, we can match the controller to the exact motor parameters — pole count, winding inductance, back-EMF constant — that each customer uses. This is why our boards consistently outperform off-the-shelf controllers in startup reliability and audible noise.
When a ceiling fan moves from an AC motor to a BLDC motor with a well-tuned controller, the real-world numbers look like this:
Full-speed power draw drops from ~75W to ~30W — a 60% reduction.
At low speed, the gap widens further: AC fans still draw 30–40W, while a BLDC fan draws under 8W.
Service life typically doubles, because brushless commutation eliminates the sparking and wear that limit AC motor bearings.
Audible noise drops by 4–8 dB, making BLDC fans suitable for bedrooms and offices where AC fans would be intrusive.
For a brand shipping 100,000 fans per year, the energy savings translate directly into a stronger efficiency rating on retail packaging — and that rating is what wins shelf space and online search ranking in 2026.
The BLDC fan controller is the component that decides whether a ceiling fan platform succeeds or stalls. Waiting until the motor is sourced and the housing is tooled before thinking about the PCBA almost always leads to compromise — a controller that almost fits, firmware that almost passes certification, and a fan that almost meets the efficiency target.
By engaging a control-solution partner like SankeyTech early in the design cycle, fan manufacturers can lock in the right motor-controller combination, avoid costly respins, and ship a quieter, more efficient, more reliable product to market faster. Contact SankeyTech to discuss your next ceiling fan platform.
