Ceiling fans are essential for comfort, but the pull chains can be a hassle. Have you considered upgrading to a remote control for your fan? Installing a ceiling fan controller not only enhances convenience but also adds a modern touch to your space.
In this article, we’ll guide you through the steps of installing a ceiling fan remote. You’ll learn how to enhance your comfort and enjoy more control over your fan's speed, direction, and light settings.
Before beginning the installation, ensure that you have the following tools and materials on hand:
● Screwdriver: For unscrewing and securing the canopy and other components.
● Wire Stripper/Cutter: Essential for stripping the wires to the correct length for connections.
● Voltage Meter: Used to confirm that no electrical current is running through the fan's wiring before you start working.
● Stepladder: For reaching the ceiling safely while installing the fan remote.
● Electrical Tape: To secure wire connections and prevent any accidental contact.
● Ceiling Fan Remote Kit: Includes the transmitter (remote control) and receiver. Make sure it is compatible with your fan model.
● Wire Nuts: Used to connect wires securely.
● Capacitor (if replacing): In case the current capacitor is faulty.
● Batteries: Typically, your remote control will require batteries to function.
Tools Needed | Materials Needed |
Screwdriver | Ceiling Fan Remote Kit |
Wire Stripper/Cutter | Wire Nuts |
Voltage Meter | Capacitor (if replacing) |
Stepladder | Batteries for Remote Control |
Electrical Tape |
Before you begin the installation process, it’s important to determine the type of ceiling fan you have. This will help you choose the right ceiling fan remote and ensure it fits your fan model.
Check the fan’s label or manual to determine whether it’s a down-rod style or a ceiling hugger model. The down-rod style typically provides more space inside the canopy to fit the remote receiver. Ceiling hugger models, on the other hand, have less room for the receiver, so make sure the kit you choose will fit. If you're unsure about compatibility, contacting the manufacturer for support is always a good option.
Before you start the installation, always remember to prioritize safety. Begin by turning off the power at the circuit breaker to ensure that no electricity is running to the fan. You can use a voltage meter to double-check that the power is off and there’s no current flowing through the fan's wiring.
Next, carefully remove the canopy from the ceiling fan. This will expose the fan’s wiring and give you access to install the receiver. Use a screwdriver to unscrew and take off the canopy. Once it’s removed, you’ll see the wires that connect the fan to the power source. Label these wires—ground, neutral, and live wires—to ensure you can easily connect them to the remote receiver.

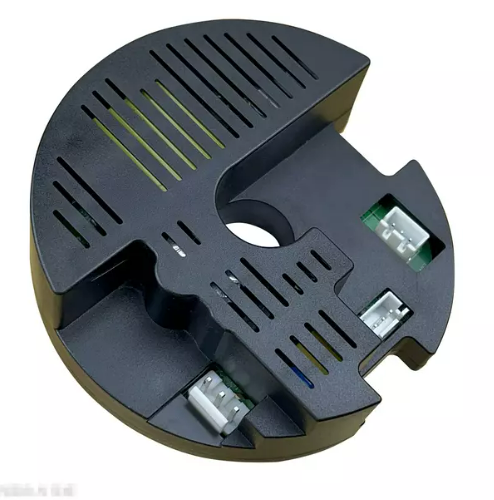

Now that you have access to the fan’s wiring, it’s time to install the remote receiver. Carefully follow the manufacturer’s instructions for wiring the receiver. Generally, you will need to make the following connections:
● White wire from the ceiling to the white wire on the receiver.
● Black wire from the ceiling to the black wire on the receiver.
● If your fan has a light, connect the blue wire from the receiver to the fan’s light wire.
● Use wire nuts to secure all connections and ensure they are firmly attached.
Once the receiver is wired, carefully position it inside the canopy. Make sure the receiver doesn’t interfere with any of the fan’s moving parts.
Connection Type | Ceiling Fan Wire | Ceiling Fan Controller Wire |
Ground Wire | Green | Green or Bare |
Neutral Wire | White | White |
Power (Live) Wire | Black | Black |
Light Wire (if applicable) | Blue | Blue (for Light Control) |
To ensure the remote and the receiver communicate correctly, set the DIP switches on both the receiver and the remote control to the same position. These switches allow you to set a unique frequency to prevent interference from nearby fans. Make sure both devices are set to match each other.
Once the receiver is connected and the DIP switches are set, it’s time to reinstall the canopy. Carefully push the wires back into the ceiling box, ensuring they are neatly tucked away. Place the canopy back over the receiver and secure it with screws. Double-check the wire connections to ensure they are secure and that the receiver is positioned properly.
Now that the receiver is installed, it’s time to pair the remote with the fan. Begin by inserting the required batteries into the remote control. Once the batteries are in place, press the pairing button on the remote control. Then, restore power to the fan by turning the circuit breaker back on. The fan should respond by adjusting its speed or turning the light on, confirming that the pairing was successful.
If the fan does not respond, ensure that the DIP switches are set correctly, both on the receiver and the remote control. You may also want to test the range of the remote by using it from different distances to ensure it is working correctly.
With the remote control paired, it’s time to test the fan’s functions. Start by using the remote to adjust the fan’s speed. The remote should be able to increase or decrease the speed of the fan without issue. If your fan has a light, test the on/off and dimming functions as well. Ensure that all the settings work as expected.
If the fan responds erratically or the remote doesn’t seem to be controlling it properly, check the frequency settings again using the DIP switches. Adjust the frequency if necessary to reduce interference and improve performance.
If your ceiling fan didn’t originally come with a remote, or if you’ve lost the original remote, you can use a universal ceiling fan remote. These remotes are designed to work with almost any ceiling fan and provide a simple solution for adding remote control functionality.
When selecting a universal remote, make sure it is compatible with your fan model. Many universal remotes offer additional features like light dimming, speed control, and even timers. Be sure to check that the remote has the functionality you need before purchasing.
Universal ceiling fan remotes are often a more affordable solution than replacing the entire fan or searching for a specific brand’s remote. They are also easy to install, following a similar process to the one outlined earlier.
Installing a ceiling fan remote is a great way to enhance comfort and control. With the right tools and careful wiring, you can easily upgrade your fan. If you're unsure about the installation, seek help from a professional electrician to ensure safety.
By following these steps, you’ll enjoy the convenience of remote control and increased functionality. Products like those from GUANGDONG SHUNDE SANKEY ELECTRONIC TECHNOLOGY CO.LTD offer high-quality ceiling fan controllers that provide reliable performance and enhance your fan's capabilities.
A: A Ceiling Fan Controller is a device that allows you to operate your ceiling fan remotely. It connects to the fan’s wiring and enables you to adjust the speed, direction, and light settings from a distance.
A: To install a Ceiling Fan Controller, first, turn off the power, remove the fan’s canopy, and connect the receiver to the fan’s wiring. Set the DIP switches to match, then reinstall the canopy. Finally, pair the remote with the receiver.

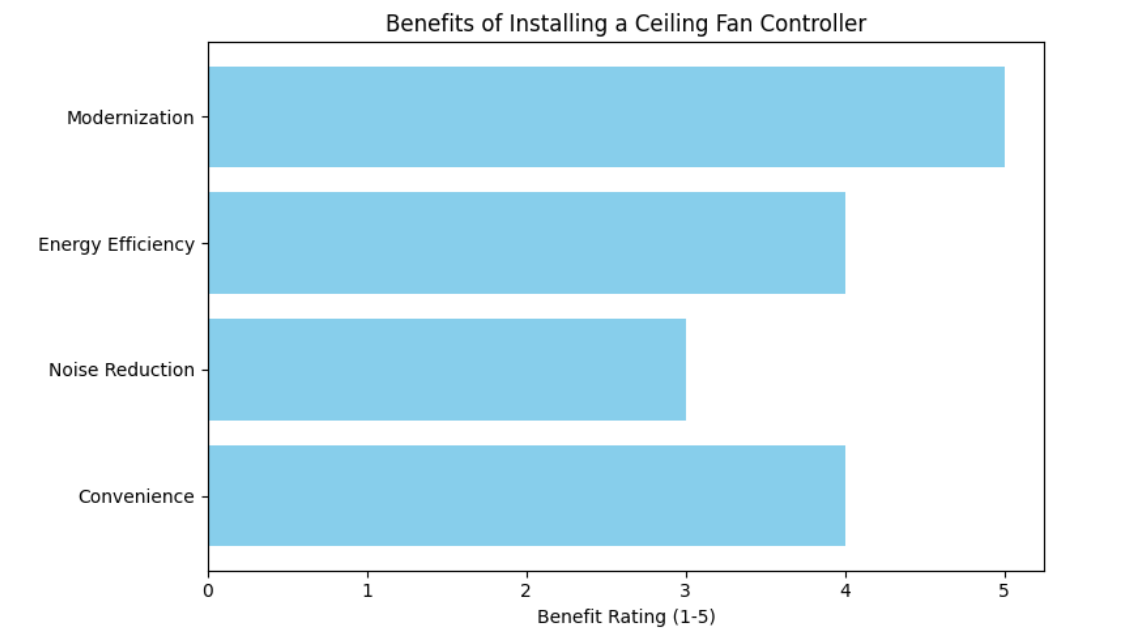

A: Upgrading to a Ceiling Fan Controller offers convenience, as you can control your fan without needing to pull chains. It also reduces noise and enhances energy efficiency by allowing easy adjustments from anywhere in the room.
A: Most ceiling fans can be upgraded with a Ceiling Fan Controller, but it’s important to check for compatibility. Ensure the fan has enough space inside the canopy to accommodate the receiver.
A: The cost of a Ceiling Fan Controller can vary depending on the brand and features. Generally, prices range from $20 to $60, making it an affordable upgrade for improved fan functionality.
A: If your Ceiling Fan Controller isn’t working, check the wiring connections, ensure the DIP switches are properly set, and test the remote’s batteries. If issues persist, consult an electrician for further troubleshooting.
